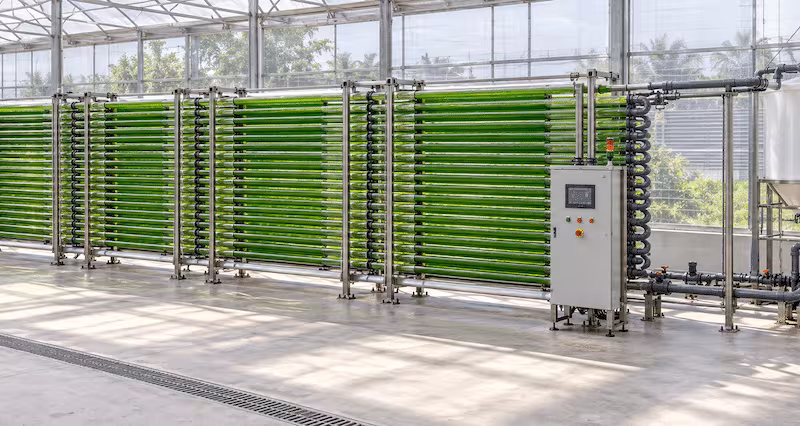

PBR 5,000L
- Organic Glass Pipe, Diameter 60mm, Length 2.8m/pipe, Capacity ~7L/pipe.
- 4040 Aluminium Frame, SS Tubes Holders & PVC Connectors.
- SS Brackets + Rubber Connectors.
- 1 Block: 23 layers x 2 pipe/row x 7L/pipe ~= 325L
- 1 Row: 4 Blocks ~= 1,250L
- 1 System: 2 Rows ~= 2,500L
- 2,500L Buffer Tank for gas exchange, harvest and nutrients supply.
- PLC, Digital Monitoring Screen and Control
- Sensor
- Temperature
- pH
- CO2 in/out
- OD
- RGB LED x 368, Timer and Brightness Control
- 18W/LED
- Air Pump + Air Mixer
- Water Circulating Pump
- Self-cleaning Ball
- Power 380V/50Hz, 14kW
- Dimension LWH 15.0 x 2.2 x 3.0m
References
Note
- Actual packaging weight and dimensions are subject to change.
- Please confirm with us at pbr@algaeliving.com for more information before order.
- PBR generally takes 8 weeks for delivery.
- We ship, and deploy worldwide. Installation is USD200/manday excluding flights and accommodations.
